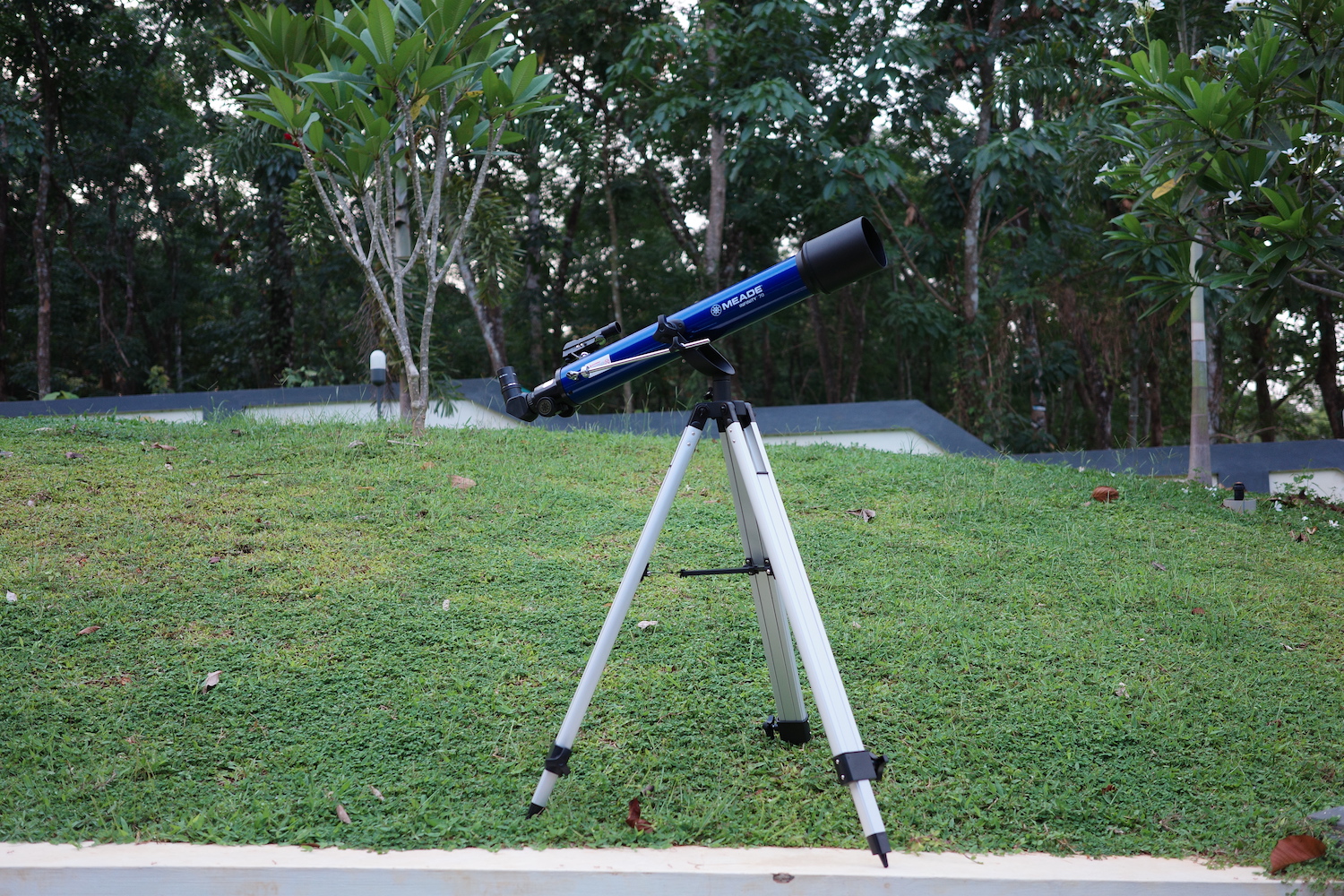

Meade Infinity 70AZ Refractor Telescope
₹12,500.00
Meade’s Infinity 70AZ is a typical small, alt-azimuth mounted refractor offered at a low price to beginners. It is substantially better than many cheap, small telescopes, which often suffer from shoddy optics, accessories, or both. The Infinity 70AZ comes with a nice set of accessories and provides acceptable views of the Moon and planets.
Description
Optics and Optical Tube Assembly
Being an achromatic refracting telescope, it of course suffers from chromatic aberration, or false color, which manifests as purplish halos around bright targets such as the Moon, planets, and stars. However, we’ve noticed that the scope’s fairly slow f/10 focal ratio is helping to make the chromatic aberration quite tolerable. We could still notice it, but the impact of it on our views is little, unlike most other refractors in this price range that we’ve tested.
Optically, we find it to be pretty good in quality, considering that it’s a cheap 70mm achromat with fairly little in the way of light gathering or resolving power.
The Infinity 70AZ has an ample-length dew shield. But the inside isn’t painted the best, and it isn’t baffled particularly well to block unwanted light either. So glare can be a problem with this scope on/around bright objects. If this is an issue for you, we recommend roughing up the inside with some coarse grit sandpaper (the dew shield comes off the scope very easily—just pull) and spraying some flat black spray paint on it.

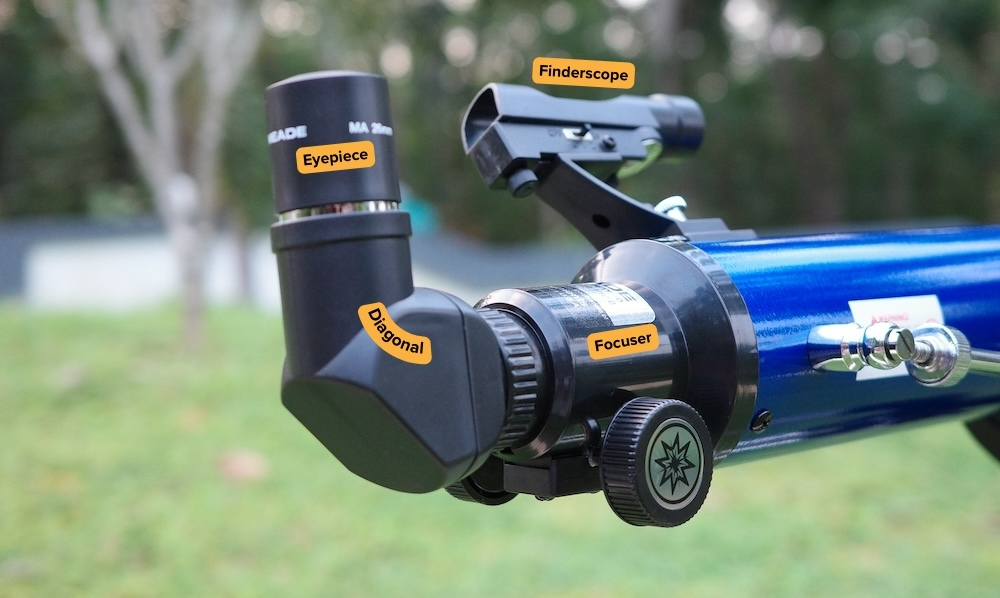

The focuser on the Infinity 70AZ is a standard 1.25” rack and pinion unit, mostly made out of plastic.

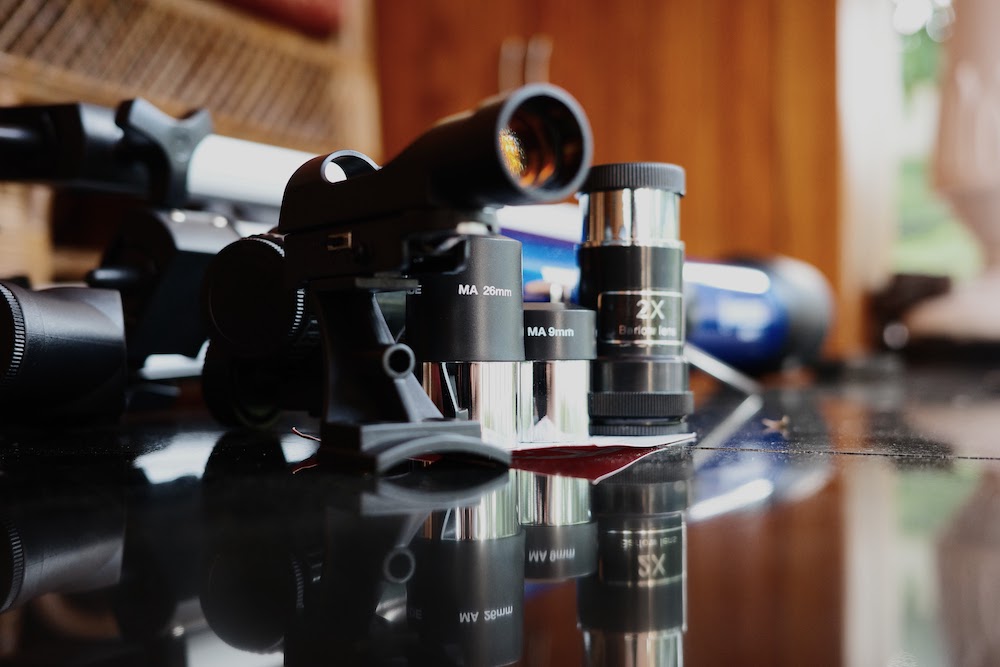

Included Accessories
The Infinity 70AZ comes with two eyepieces: a 25mm Kellner for 28x and a 9mm Kellner giving 78x.
Meade also supplies a 2x Barlow, allowing you to achieve double magnification with the supplied eyepieces (56x with the 25mm Kellner and 156x with the 9mm Kellner). 156x magnification is slightly above the limit of what the scope can technically handle.
The 2x Barlow is mostly plastic but is at least usable, although it really isn’t much more helpful than a dedicated 12.5mm eyepiece would be.
The Infinity 70AZ’s supplied diagonal is an all-plastic Amici prism, allowing for correct left-right images. The Amici design inevitably produces a spike effect on bright stars and the planets, but other than that, it works surprisingly well. Care must be taken in handling it, as it is somewhat fragile and is easily damaged.
The Infinity 70AZ’s plastic red dot finder is decent in quality and more than adequate for aiming a 70mm telescope.

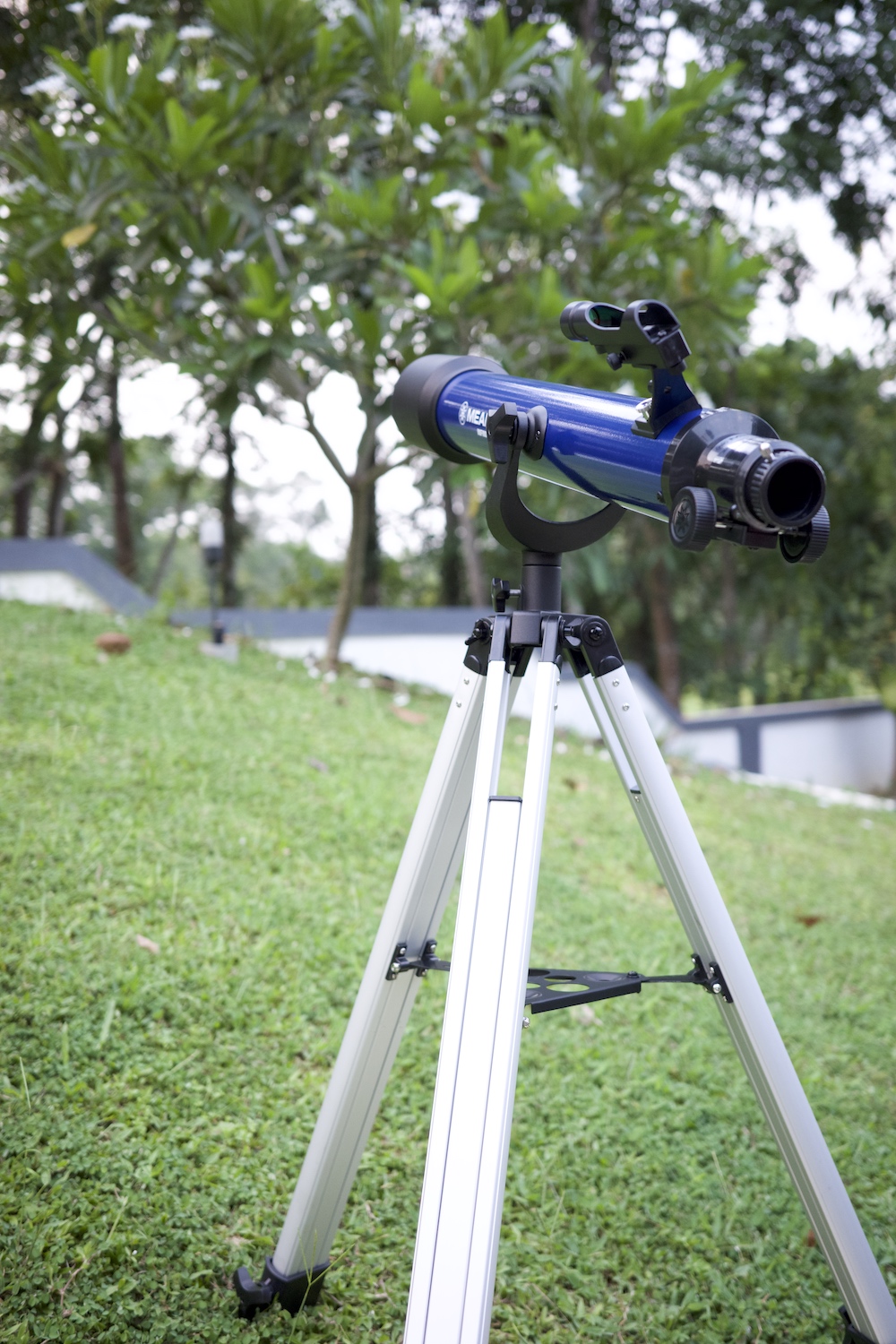

Mount

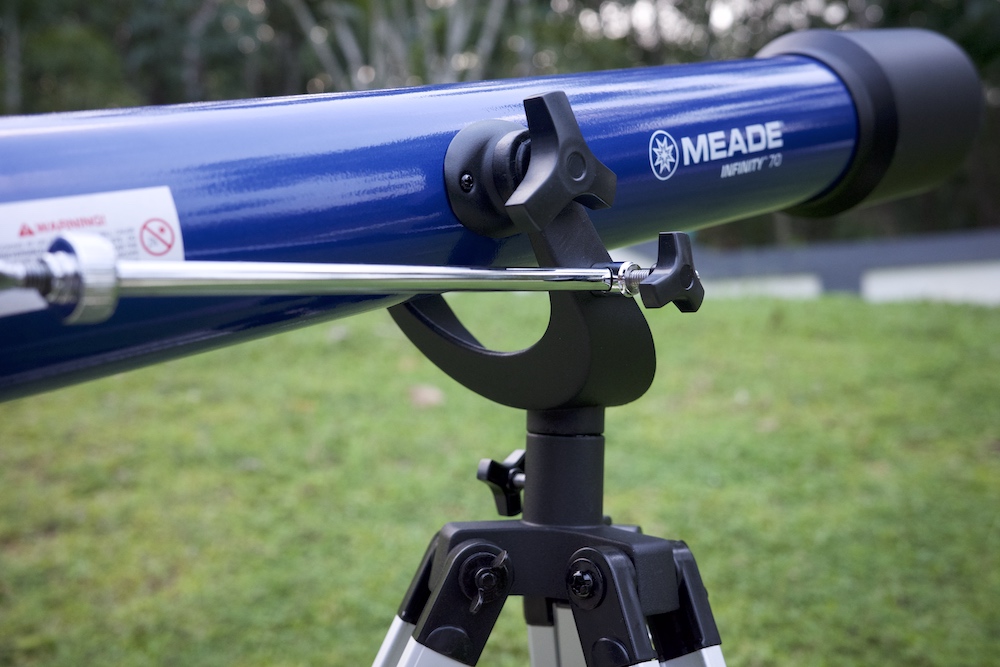

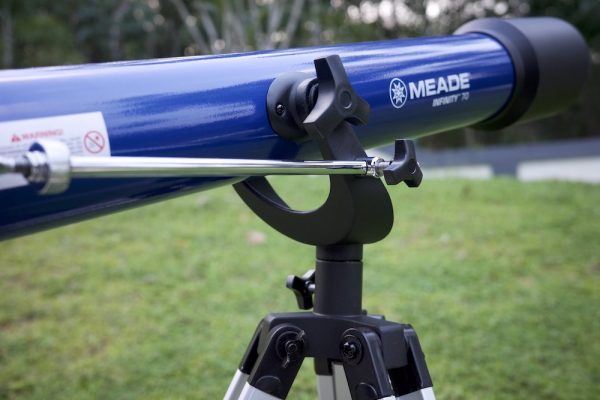

The Meade Infinity 70 AZ’s mount’s design has been around on inexpensive refractors since the 1950s but is highly variable in how well it’s actually executed.
Tensioning on both axes can be adjusted with two large plastic hand knobs that increase the friction on the bearings.
While not the most aesthetically pleasing and lacking slow-motion controls, the long tube of the Infinity 70 makes it surprisingly tolerable to simply push the tube to move the scope.
If you’re concerned about stability, adding a sandbag or brick to the accessory tray and/or filling the legs with spray foam are cheap, easy, and effective ways to dampen the scope’s tripod.
What can you see with the Meade Infinity 70AZ?
Testing Solar System Targets
The Meade Infinity 70 shows a lot of detail on the Moon, Mercury, and Venus’ phases, the ice cap on Mars when it’s at opposition, as well as Jupiter’s cloud bands, the Great Red Spot, and its satellites.
Saturn’s rings and its moon, Titan, are visible, and on a good night, some of Saturn’s cloud bands and the Cassini division in its rings can be spotted.
Uranus and Neptune are tiny bluish dots that are difficult to locate without consuming a lot of time.
Testing Targets Outside Solar System
Outside the solar system, you’re limited by the Infinity 70’s small aperture.
The Orion Nebula and many bright open clusters can be spotted, along with Andromeda and a few other galaxies. But don’t set your expectations too high, especially if you live in or near a city.
Globular clusters, in particular, disappoint with the Infinity 70—or any small telescope—even under dark skies, being simply too small or dim to resolve with a telescope below about 6” of aperture.
A few of the large planetary nebulae, such as the Ring and Dumbbell, show detail, but don’t expect dazzling colors or easy-to-spot features.
There are also a fair amount of double stars and asteroids that can be spotted with the Infinity 70, though they will remain points of light (if perhaps colorful ones) no matter what magnification or telescope you use.
